Control of 1MW steam turbine (SKODA Power)

Description

The aim was to develop software part of control and monitoring system for experimental 1 MW steam turbine. The taks was done for SKODA POWER a.s. and is divided into two parts:

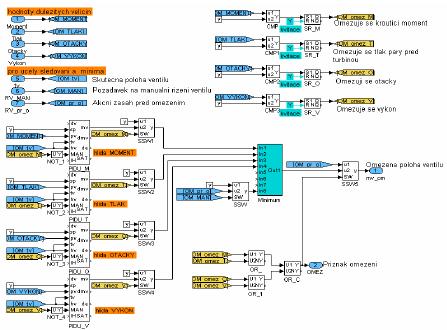

- creation of the complete control algoriths

- development of operator panel and data acquisition tools

The control system is based on REX and is implemented on WinCon-8371 PLC (ICPDAS Inc). Operrator interface and database is implented in Reliance3 (Geovap s.r.o).

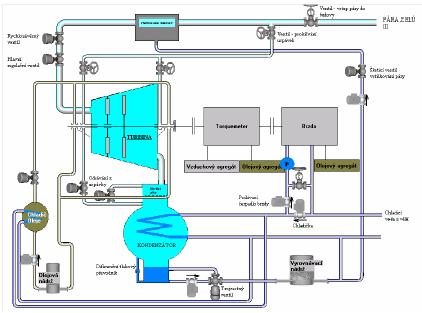

Photos

HW and SW

• HW: Wincon PLC with Windows CE operating system + expansion dock for serial I/O modules

• SW: REX control system
• SW: Visualization - Reliance
