Control system of torque cells calibration stand (ZF Engineering, UWB)

Description

Based on REX, a control system of a torque cells calibration stand has been developed. The calibration process works in a wide torque range from 100 Nm to 10 000 Nm. The principle of calibration is based on high-quality torque control, and automatic generation of calibration experiments. The achieved relative precision of calibration is one 1/100000 of the full scale. Automatically generated calibration protocols are saved to the enterprise information system of ZF. The development was done by the team of ZF Engineering and UWB.

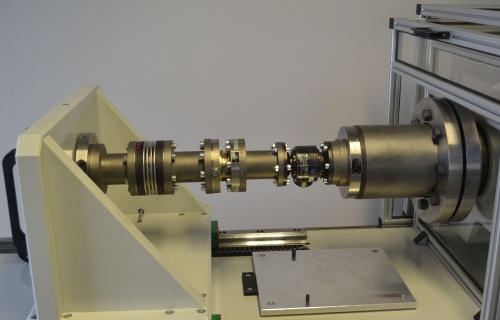

Photos

HW and SW

  • HW: WinPAC - Windows CE 5.0
  • SW: REX control system
  • SW: Visualization - NI LabVIEW
