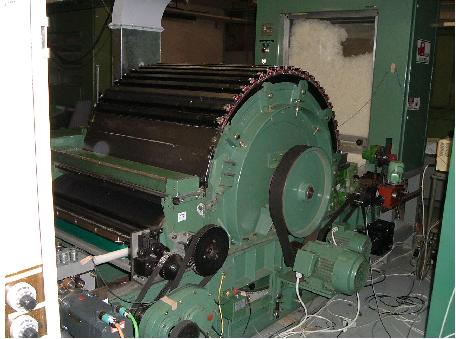

Textile sliver machine (VUTS)

Description

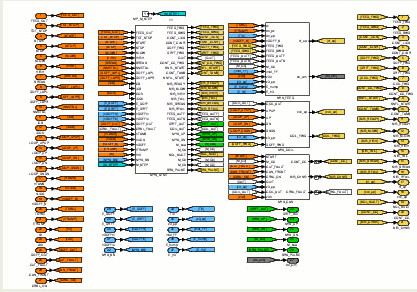

The control system of the textile sliver machine for VUTS a.s. was developed using Simulink SW system, dSpace HW and blockset for industrial process control RexLib. The usage of cascade control, IMC with feed forward control and parameter autotuning ensures high quality of finesse of the output sliver. The final target platform is an industrial PC with operating sytem Phar Lap and REX control system.

Photos

Video

HW and SW used

• HW: Industrial PC, PharLap ETS, Advantech I/O boards

• SW: REX Control system

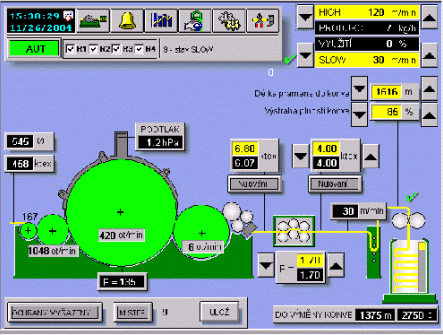

• SW: Visualization - Indusoft
