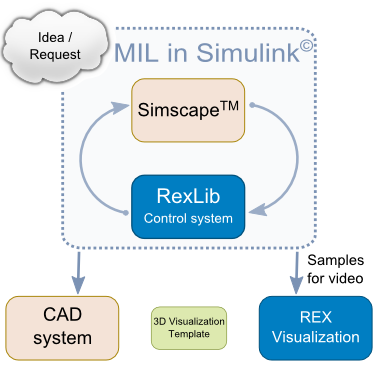

MIL simulation - Model in the loop

  • The same computer and simulation environment is used for simulating both the mathematical model and the control system
  • The RexLib function block library is used, Simulink environment is used for simulation
  • Intended for evaluation and optimization of the machine or technology; the input and output signals are defined and the control schemes are designed

MIL simulation in the REX control system
